This example is taken from the ProBound web server, and corresponds to Figure 3a-b in the original Nature Biotech publication.

This example produces models for three Drosophila homeodomain proteins (Ubx, Exd, and Hth) as well as the binding cooperativity of the trimer (while the Ubx:Exd complex has fixed spacing, Hth can have variable spacing relative to Ubx:Exd in the trimer). It does so by training on SELEX-seq data for each factor, as well as assays in which two or more of the factors were present.

import torch

import pyprobound
import pyprobound.plotting

Data specification

alphabet = pyprobound.alphabets.DNA()

url = "http://pbdemo.x3dna.org/files/example_data/hthExdUbx/"
dataframe_UbxExdHth = pyprobound.get_dataframe(
    f"{url}countTable.0.UbxIVa-Hth-Exd.30mer1.tsv.gz"
)
dataframe_UbxExd = pyprobound.get_dataframe(
    f"{url}countTable.1.UbxIVa-Exd.16mer1_rep1.tsv.gz"
)
dataframe_Ubx = pyprobound.get_dataframe(
    f"{url}countTable.2.UbxIVa.16mer1_rep1.tsv.gz"
)
dataframe_Exd = pyprobound.get_dataframe(f"{url}countTable.3.Exd.tsv.gz")
dataframe_Hth = pyprobound.get_dataframe(
    f"{url}countTable.4.Hth.16mer2_rep1.tsv.gz"
)

count_table_UbxExdHth = pyprobound.CountTable(  # varlen=30
    dataframe_UbxExdHth,
    alphabet,
    left_flank="GTTCAGAGTTCTACAGTCCGACGATC",
    right_flank="CCCGGGTCGTATGCCGTCTTCTGCTTG",
    left_flank_length=7,
    right_flank_length=7,
)
count_table_UbxExd = pyprobound.CountTable(  # varlen=16
    dataframe_UbxExd,
    alphabet,
    left_flank="GTTCAGAGTTCTACAGTCCGACGATCTGG",
    right_flank="CCAGCTGTCGTATGCCGTCTTCTGCTTG",
    left_flank_length=7,
    right_flank_length=7,
)
count_table_Ubx = pyprobound.CountTable(  # varlen=16
    dataframe_Ubx,
    alphabet,
    left_flank="GTTCAGAGTTCTACAGTCCGACGATCTGG",
    right_flank="CCAGCTGTCGTATGCCGTCTTCTGCTTG",
    left_flank_length=5,
    right_flank_length=5,
)
count_table_Exd = pyprobound.CountTable(  # varlen=16
    dataframe_Exd,
    alphabet,
    left_flank="TGGGCCTGG",
    right_flank="CCAGG",
    left_flank_length=5,
    right_flank_length=5,
)
count_table_Hth = pyprobound.CountTable(  # varlen=16
    dataframe_Hth,
    alphabet,
    left_flank="GTTCAGAGTTCTACAGTCCGACGATCTGG",
    right_flank="CCACGTCTCGTATGCCGTCTTCTGCTTG",
    left_flank_length=5,
    right_flank_length=5,
)
count_tables = [
    count_table_UbxExdHth,
    count_table_UbxExd,
    count_table_Ubx,
    count_table_Exd,
    count_table_Hth,
]

Model specification

PSAMs

nonspecific = pyprobound.layers.NonSpecific(alphabet=alphabet)
psam_ExdUbx = pyprobound.layers.PSAM(
    kernel_size=13,
    alphabet=alphabet,
    seed=["NATGATTTATGAN"],
    seed_scale=6,
    name="ExdUbx",
)
psam_Exd = pyprobound.layers.PSAM(
    kernel_size=8,
    alphabet=alphabet,
    seed=["NTTGAYRN"],
    seed_scale=6,
    name="Exd",
)
psam_Ubx = pyprobound.layers.PSAM(
    kernel_size=8,
    alphabet=alphabet,
    seed=["NTTATGGN"],
    seed_scale=6,
    name="Ubx",
)
psam_Hth = pyprobound.layers.PSAM(
    kernel_size=8,
    alphabet=alphabet,
    seed=["NNTGAYRN"],
    seed_scale=6,
    name="Hth",
)
spacing_ExdUbx_Hth = pyprobound.Spacing(
    [psam_ExdUbx], [psam_Hth], max_overlap=7
)
psams = [psam_ExdUbx, psam_Exd, psam_Ubx, psam_Hth]

Modes

modes_UbxExdHth = [
    pyprobound.Mode.from_nonspecific(nonspecific, count_table_UbxExdHth)
] + [
    pyprobound.Mode.from_psam(psam, count_table_UbxExdHth)
    for psam in (psam_ExdUbx, psam_Exd, psam_Ubx, psam_Hth)
]
modes_UbxExdHth.append(
    pyprobound.Cooperativity(
        spacing_ExdUbx_Hth, modes_UbxExdHth[1], modes_UbxExdHth[4]
    )
)
modes_UbxExd = [
    pyprobound.Mode.from_nonspecific(nonspecific, count_table_UbxExd)
] + [
    pyprobound.Mode.from_psam(psam, count_table_UbxExd)
    for psam in (psam_ExdUbx, psam_Exd, psam_Ubx)
]
modes_Ubx = [
    pyprobound.Mode.from_nonspecific(nonspecific, count_table_Ubx),
    pyprobound.Mode.from_psam(psam_Ubx, count_table_Ubx),
]
modes_Exd = [
    pyprobound.Mode.from_nonspecific(nonspecific, count_table_Exd),
    pyprobound.Mode.from_psam(psam_Exd, count_table_Exd),
]
modes_Hth = [
    pyprobound.Mode.from_nonspecific(nonspecific, count_table_Hth),
    pyprobound.Mode.from_psam(psam_Hth, count_table_Hth),
]

Rounds

rounds_UbxExdHth = pyprobound.rounds.repeat_round(
    modes_UbxExdHth, 4, pyprobound.rounds.BoundUnsaturatedRound
)
rounds_UbxExd = pyprobound.rounds.repeat_round(
    modes_UbxExd, 4, pyprobound.rounds.BoundUnsaturatedRound
)
rounds_Ubx = pyprobound.rounds.repeat_round(
    modes_Ubx, 3, pyprobound.rounds.BoundUnsaturatedRound
)
rounds_Exd = pyprobound.rounds.repeat_round(
    modes_Exd, 2, pyprobound.rounds.BoundUnsaturatedRound
)
rounds_Hth = pyprobound.rounds.repeat_round(
    modes_Hth, 2, pyprobound.rounds.BoundUnsaturatedRound
)

Experiments

experiments = [
    pyprobound.Experiment(rounds_UbxExdHth, name="UbxExdHth"),
    pyprobound.Experiment(rounds_UbxExd, name="UbxExd"),
    pyprobound.Experiment(rounds_Ubx, name="Ubx"),
    pyprobound.Experiment(rounds_Exd, name="Exd"),
    pyprobound.Experiment(rounds_Hth, name="Hth"),
]

Model

model = pyprobound.MultiExperimentLoss(experiments, pseudocount=0)

Fitting

optimizer = pyprobound.Optimizer(
    model,
    count_tables,
    device="cpu",
    checkpoint="UbxExdHth.pt",
    output="UbxExdHth.txt",
)

optimizer.train_sequential()

tensor(0.7766)

optimizer.reload()

{'time': 'Wed Apr 24 01:08:53 2024',
 'version': '1.3.1',
 'flank_lengths': ((7, 7), (5, 5), (5, 5), (5, 5), (5, 5))}

Loss

with torch.inference_mode():
    loss, reg = model(count_tables)
    print(loss, reg, loss + reg)

tensor(0.7763) tensor(0.0003) tensor(0.7766)

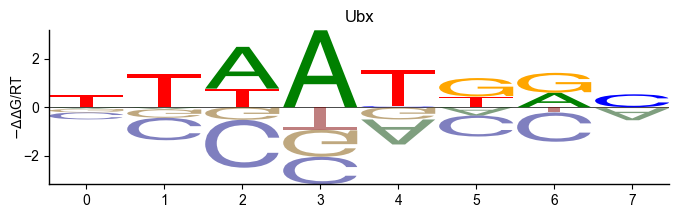

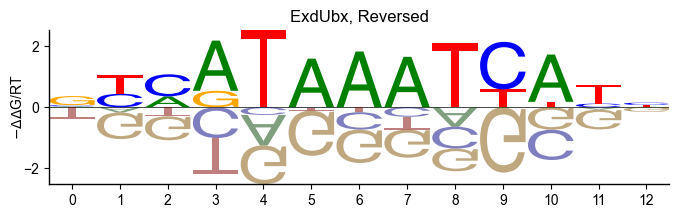

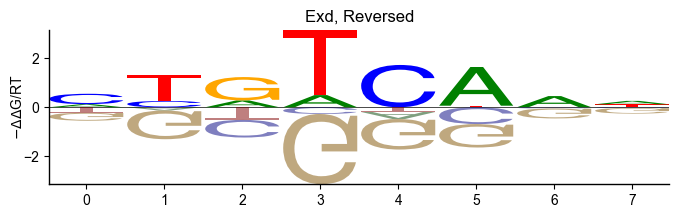

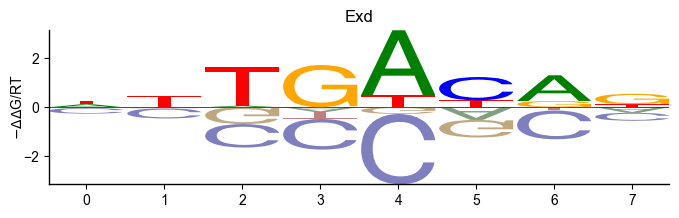

Logo

for psam in psams:

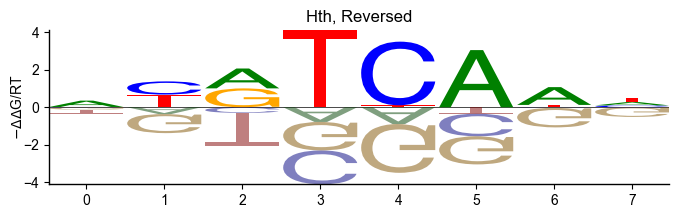

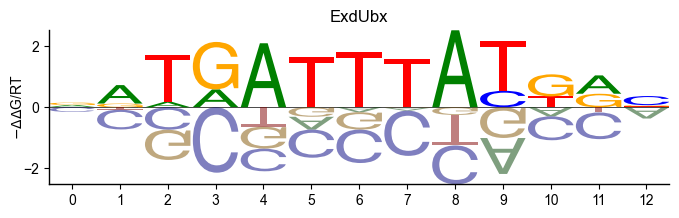

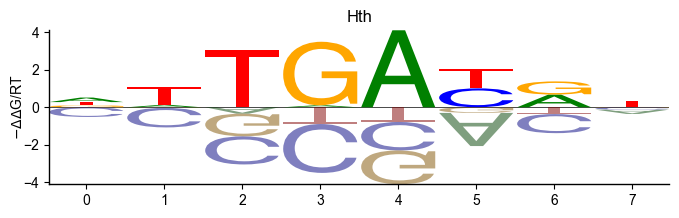

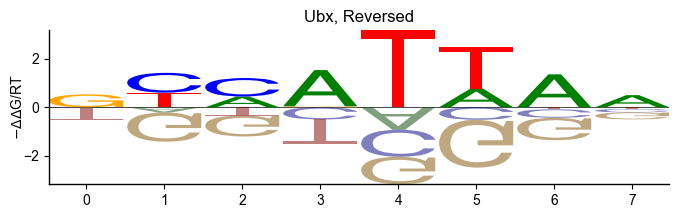

    pyprobound.plotting.logo(psam)
    pyprobound.plotting.logo(psam, reverse=True)

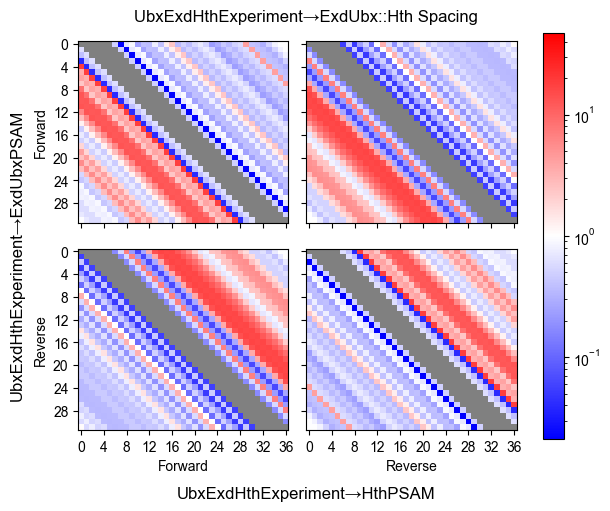

Cooperativity

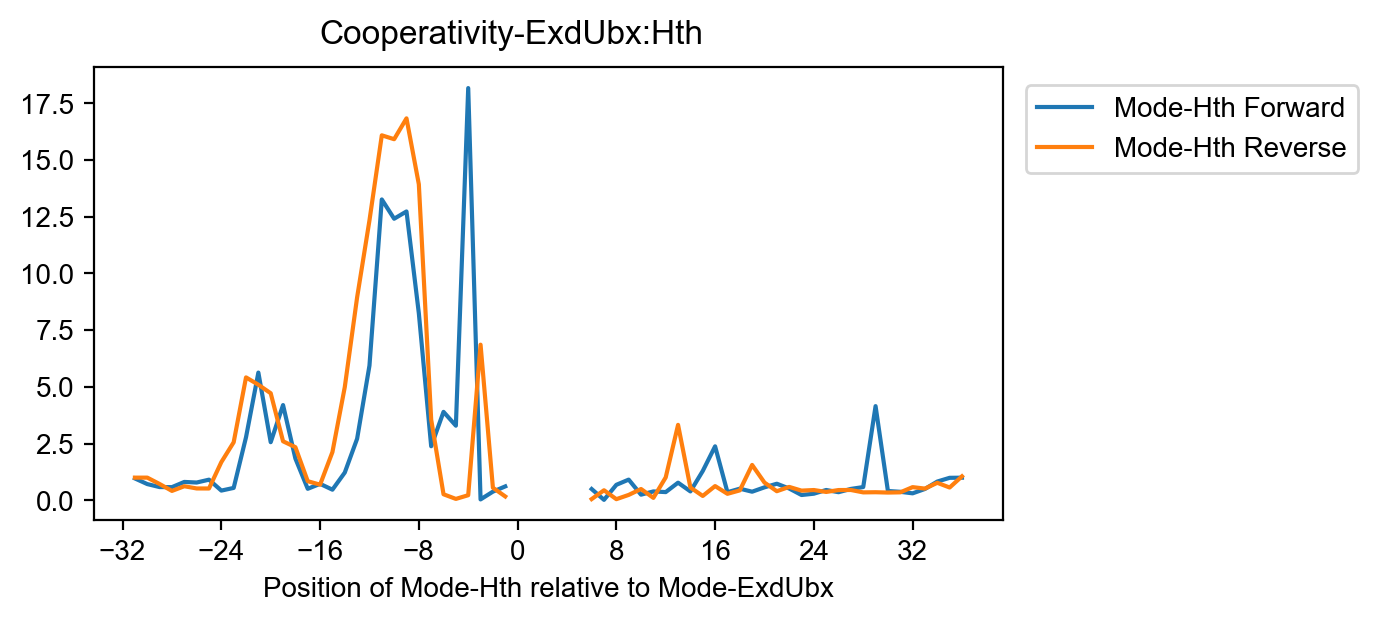

pyprobound.plotting.spacing(modes_UbxExdHth[-1])

pyprobound.plotting.cooperativity(modes_UbxExdHth[-1])

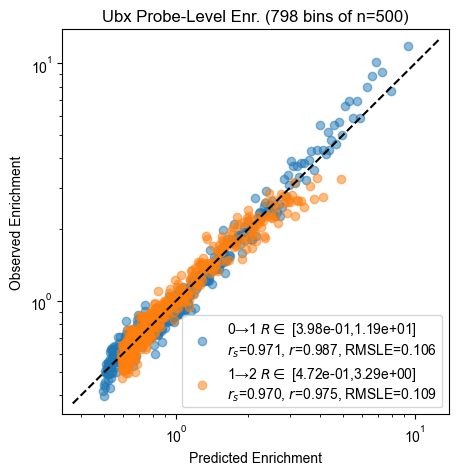

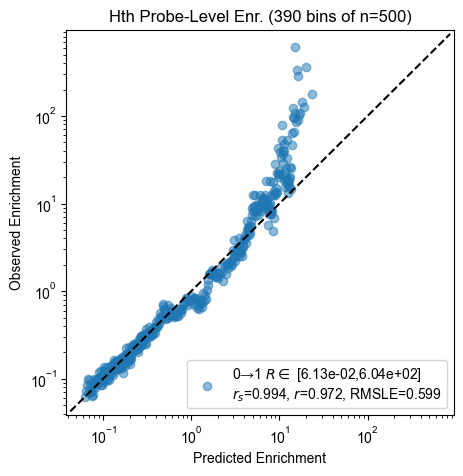

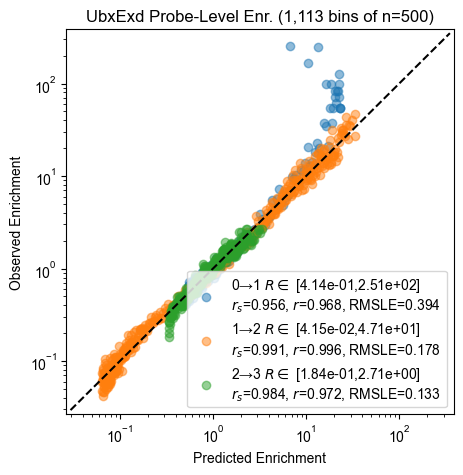

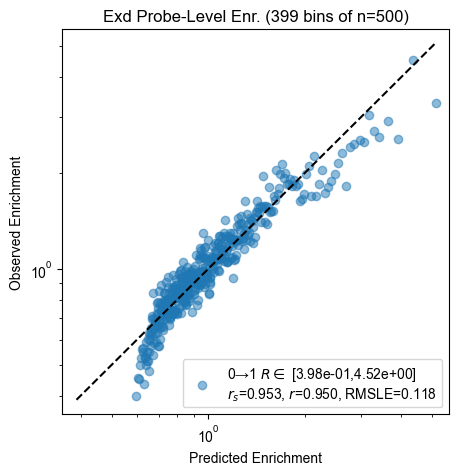

Probe enrichment

for experiment, count_table in zip(experiments, count_tables):

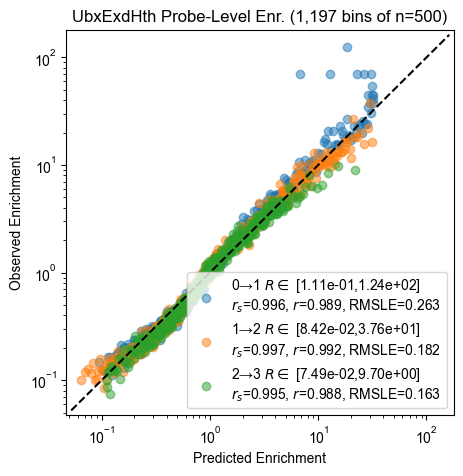

    pyprobound.plotting.probe_enrichment(experiment, count_table)

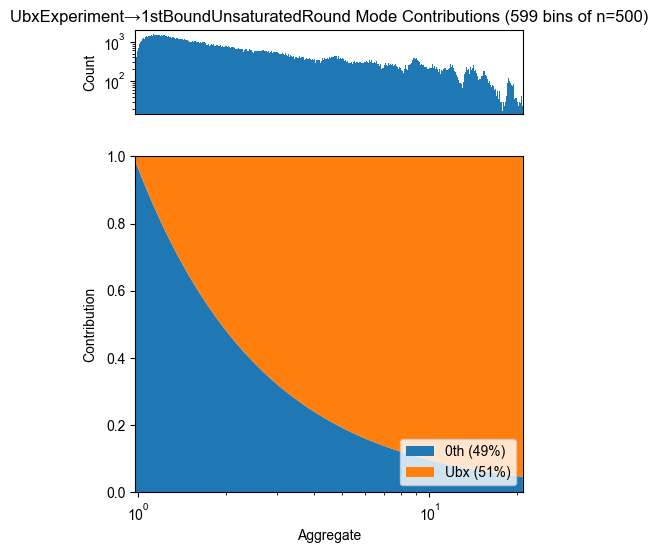

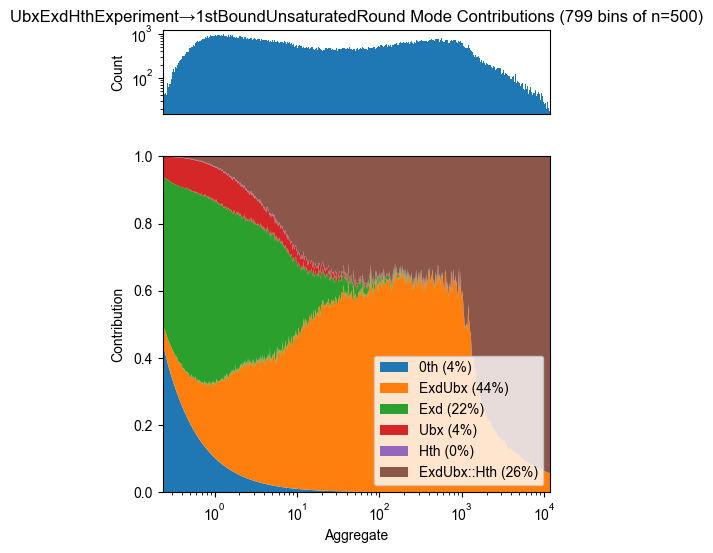

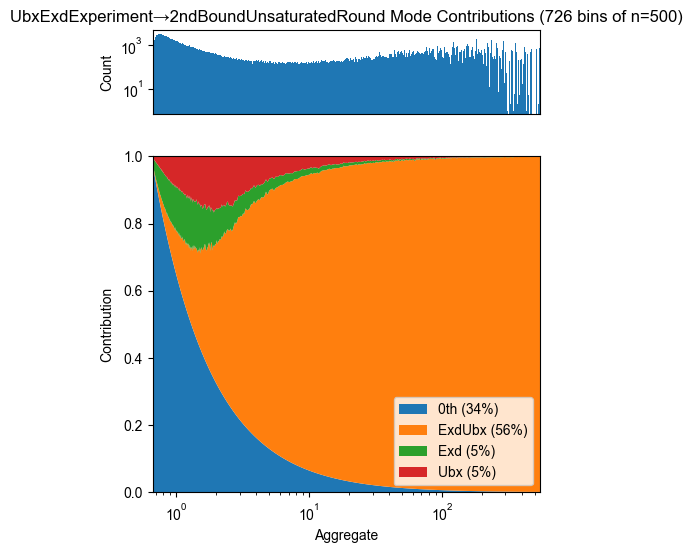

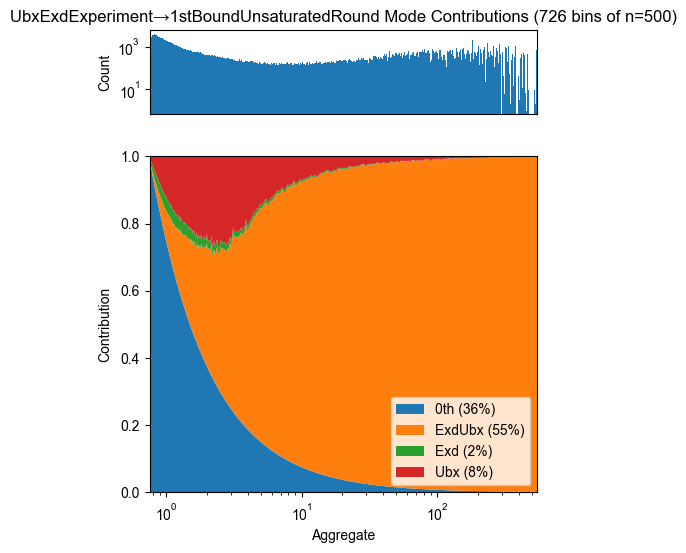

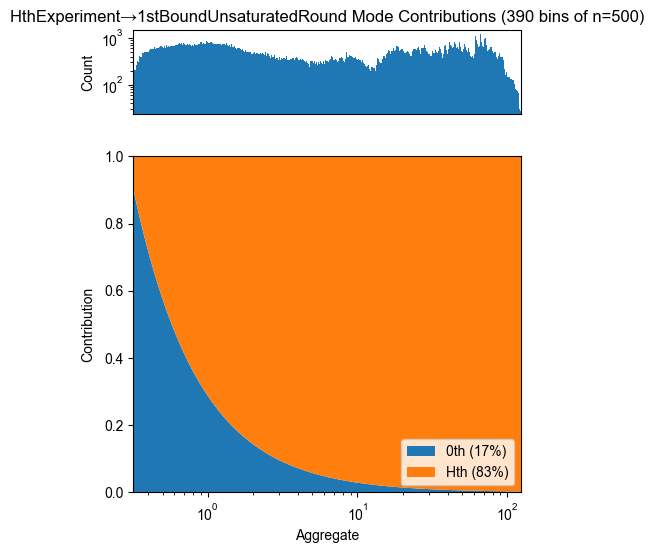

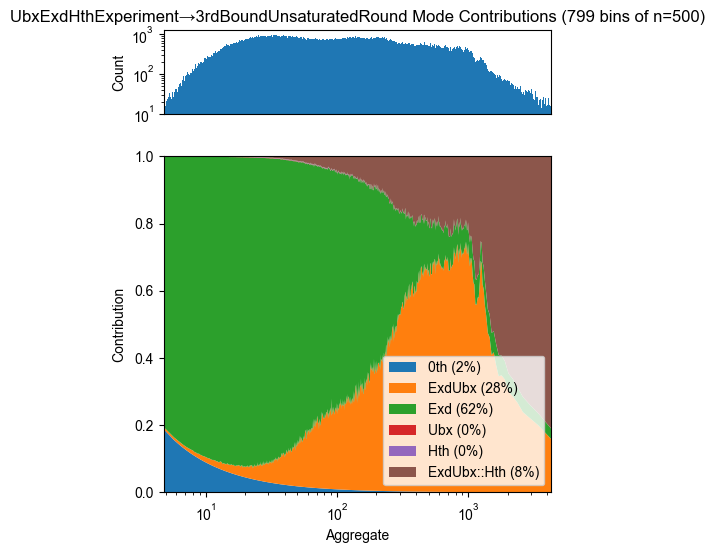

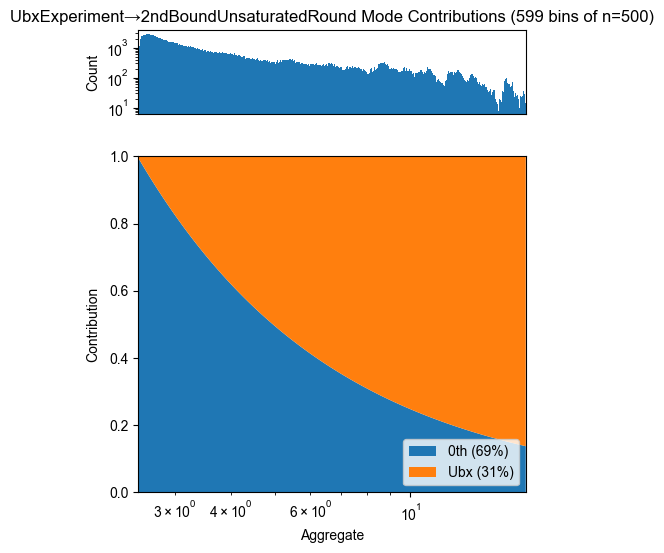

Mode contribution

for experiment, count_table in zip(experiments, count_tables):
    for rnd in experiment.observed_rounds[1:]:

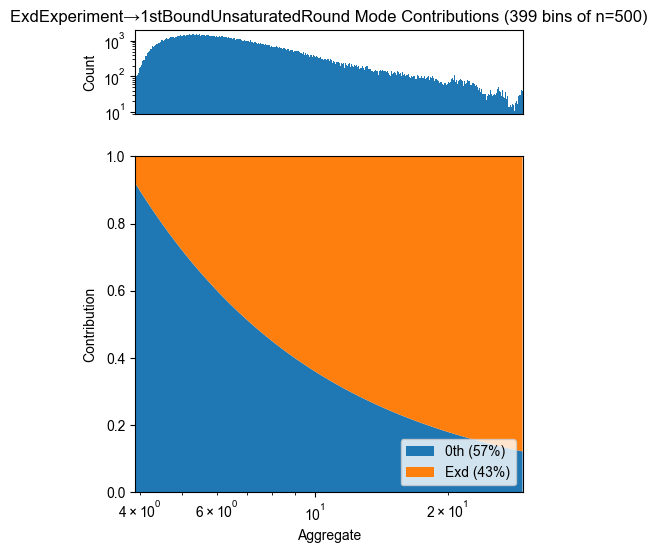

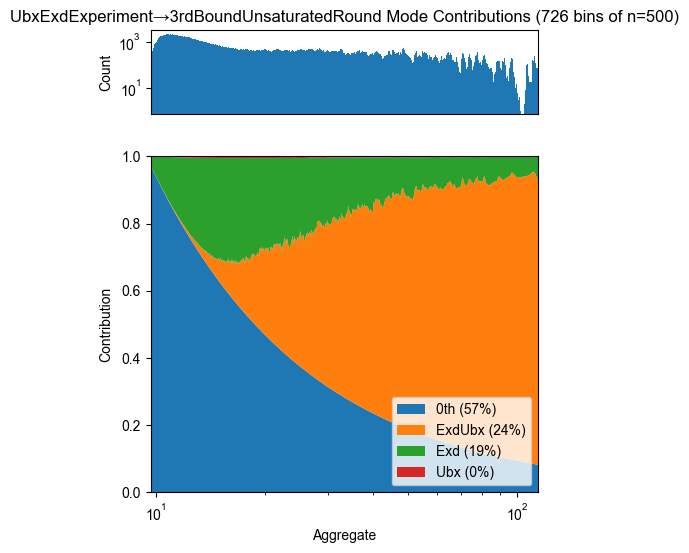

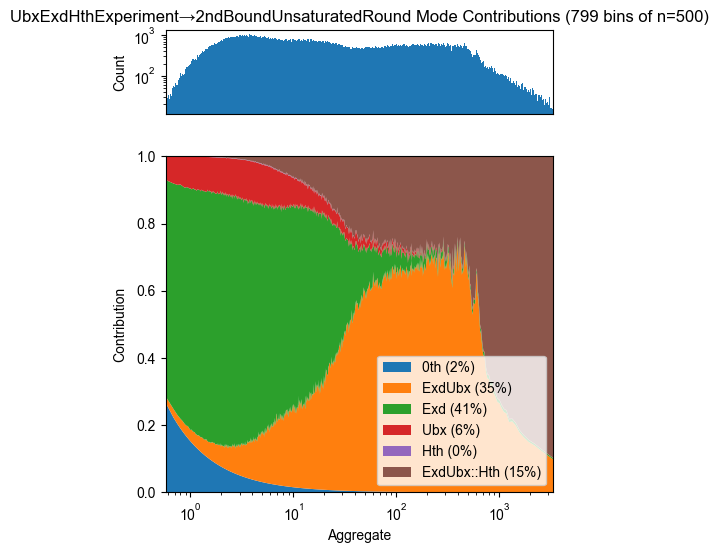

        pyprobound.plotting.contribution(rnd, count_table)
