This example is taken from the allele-specific binding manuscript that introduces PyProBound.

This example produces a single CTCF binding model by training on paired-end ChIP-seq data. Since the reads were 100bp long, the count table was created by directly pair-ending overlapping ChIP-seq reads, without any read mapping or peak calling steps. To improve the accuracy of the model, sequence-specific bias in fragmentation is modeled as an unobserved enrichment step predicted by scoring a bias model at the ends of each read.

import torch

import pyprobound
import pyprobound.plotting

Matplotlib is building the font cache; this may take a moment.

Data specification

alphabet = pyprobound.alphabets.DNA()

dataframe = pyprobound.get_dataframe(
    "https://github.com/BussemakerLab/AlleleSpecificBinding/raw/main/in-vivo/"
    "data/CTCF_ChIP-seq/Control-R1_CTCF-R1.1000000.tsv.gz"
)
# ChIP-seq count table generated by directly merging paired end data
# from ENCODE with accession codes ENCLB581JXH and ENCLB048DBS

count_table = pyprobound.CountTable(dataframe, alphabet, wildcard_pad=True)

Model specification

PSAMs

nonspecific = pyprobound.layers.NonSpecific(alphabet=alphabet, name="NS")
fragmentation_psams = [
    pyprobound.layers.PSAM(
        alphabet=alphabet, kernel_size=10, name=f"Fragmentation{i}"
    )
    for i in range(5)
]
ctcf_psam = pyprobound.layers.PSAM(
    alphabet=alphabet, kernel_size=18, seed=["---CGCCMYCTAGTGG--"], name="CTCF"
)
psams = fragmentation_psams + [ctcf_psam]

Modes

# NS
mode_ns = pyprobound.Mode.from_nonspecific(nonspecific, count_table)

# LeftFragmentation
roll_left = pyprobound.layers.Roll.from_spec(
    pyprobound.layers.RollSpec(
        alphabet, direction="left", max_length=10, include_n=True
    ),
    count_table,
)
conv1ds_left = [
    pyprobound.layers.Conv1d.from_psam(
        psam, roll_left, out_channel_indexing=[0]
    )
    for psam in fragmentation_psams
]
modes_left = [
    pyprobound.Mode([roll_left, conv1d_left]) for conv1d_left in conv1ds_left
]

# RightFragmentation
roll_right = pyprobound.layers.Roll.from_spec(
    pyprobound.layers.RollSpec(
        alphabet, direction="right", max_length=10, include_n=True
    ),
    count_table,
)
conv1ds_right = [
    pyprobound.layers.Conv1d.from_psam(
        psam, roll_right, out_channel_indexing=[1]
    )
    for psam in fragmentation_psams
]
modes_right = [
    pyprobound.Mode([roll_right, conv1d_right])
    for conv1d_right in conv1ds_right
]

# CTCF
roll_center = pyprobound.layers.Roll.from_spec(
    pyprobound.layers.RollSpec(alphabet, direction="center", include_n=True),
    count_table,
)
conv1d = pyprobound.layers.Conv1d.from_psam(
    ctcf_psam,
    roll_center,
    train_posbias=True,
    bias_bin=5,
    length_specific_bias=False,
    bias_mode="same",
)
mode_ctcf = pyprobound.Mode([roll_center, conv1d])

Rounds

round_initial = pyprobound.rounds.InitialRound()
reference_round = round_initial
for mode_left, mode_right in zip(modes_left, modes_right):
    round_left = pyprobound.rounds.BoundUnsaturatedRound.from_binding(
        [mode_ns, mode_left],
        reference_round,
        activity_heuristic=0.1,
        train_depth=False,
    )
    round_right = pyprobound.rounds.BoundUnsaturatedRound.from_binding(
        [mode_ns, mode_right],
        round_left,
        activity_heuristic=0.1,
        train_depth=False,
    )
    reference_round = round_right
round_bound = pyprobound.rounds.BoundUnsaturatedRound.from_binding(
    [mode_ns, mode_ctcf], reference_round, activity_heuristic=0.4
)

Experiment

experiment = pyprobound.Experiment(
    [round_initial, round_bound], counts_per_round=count_table.counts_per_round
)

Model

model = pyprobound.MultiExperimentLoss([experiment], full_loss=True)

Fitting

optimizer = pyprobound.Optimizer(
    model,
    [count_table],
    greedy_threshold=0,
    device="cpu",
    optim_args={"max_iter": 500, "tolerance_grad": 1e-9},
    checkpoint="CTCF_ChIP-seq.pt",
    output="CTCF_ChIP-seq.txt",
)

order = [
    [mode_ns.key()],
    *zip([i.key() for i in modes_left], [i.key() for i in modes_right]),
    [mode_ctcf.key()],
]
optimizer.train_sequential(order=order)

optimizer.reload()

{'time': 'Wed Aug 14 16:29:00 2024',
 'version': '1.4.0',
 'flank_lengths': ((0, 0),)}

Loss

with torch.inference_mode():
    loss, reg = model([count_table])
    print(loss, reg, loss + reg)

tensor(1.6361) tensor(0.0005) tensor(1.6366)

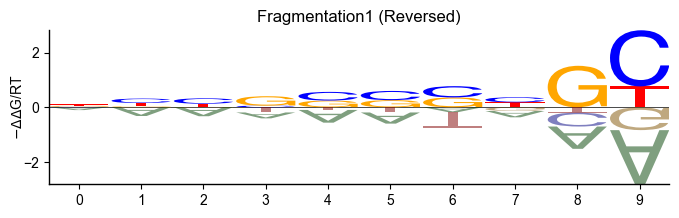

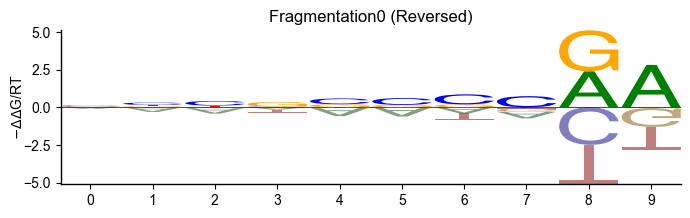

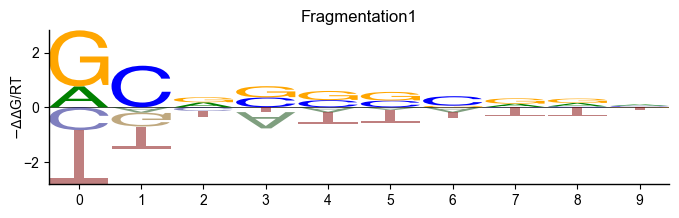

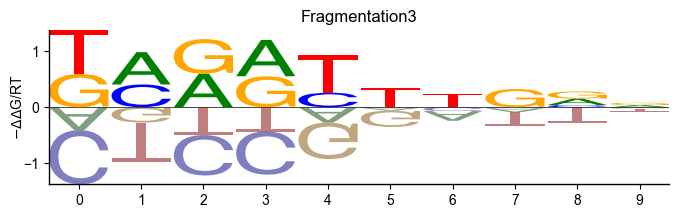

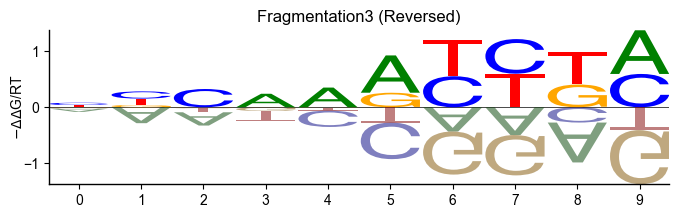

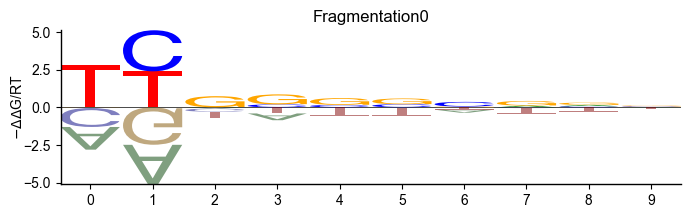

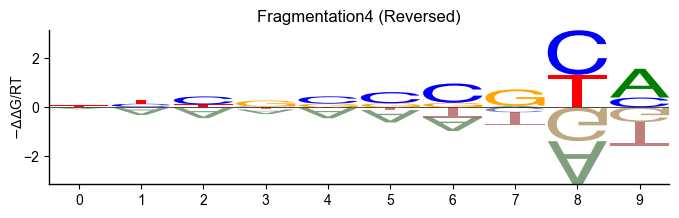

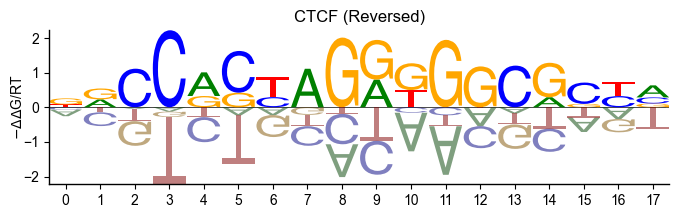

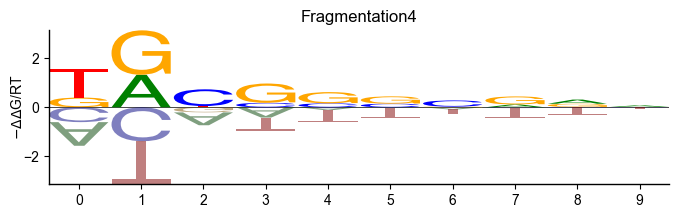

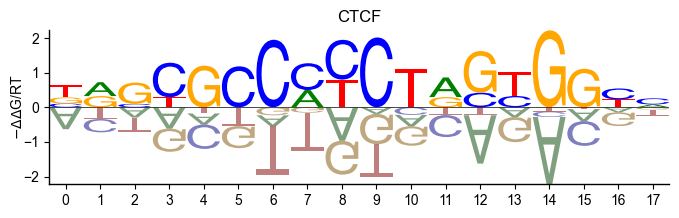

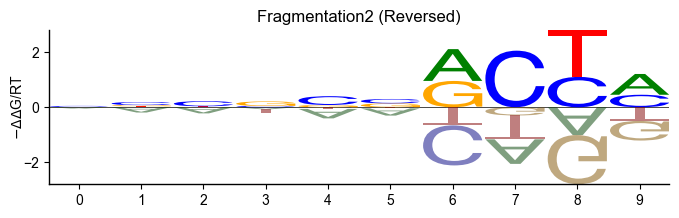

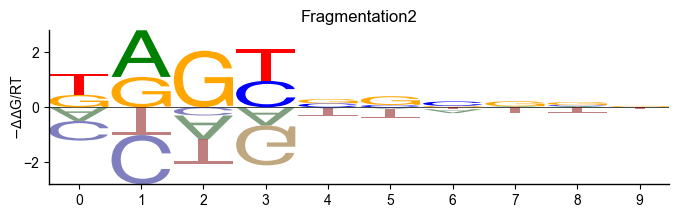

Logo

for psam in psams:
    pyprobound.plotting.logo(psam)
    pyprobound.plotting.logo(psam, reverse=True)

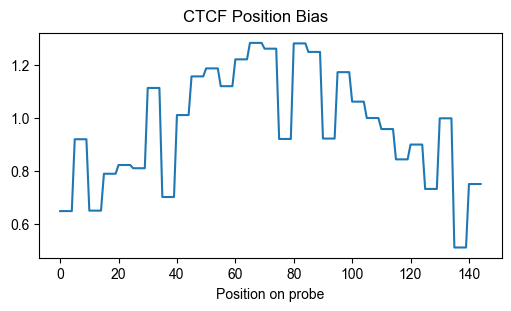

Position bias

pyprobound.plotting.posbias(mode_ctcf)

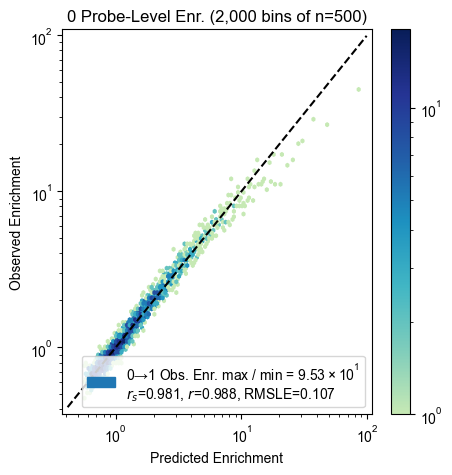

Probe enrichment

pyprobound.plotting.probe_enrichment(experiment, count_table)
